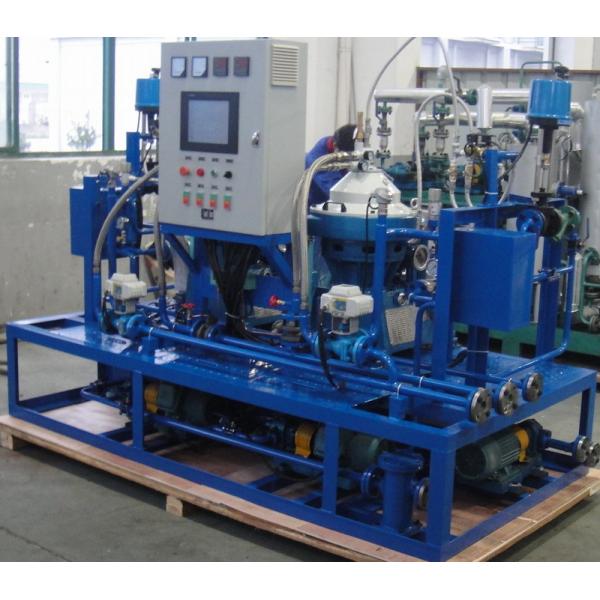

Custom Centrifugal Hfo Purifier Separator , Lube Oil Purification System

KANGWEI ENVIRONMENT ENERGY GROUP

Custom Centrifugal Hfo Purifier Separator , Lube Oil Purification System

Place of Origin : WUXI , CHINA

Brand Name : KANGWEI

Certification : CCS,BV,GL

Model Number : DA405-SD

MOQ : 1SET

Packaging Details : CONTAINER ,WOODEN CASE

Delivery Time : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 50SETS

Price : NEGOTIATED

Contact Now

Custom Centrifugal Hfo Purifier Separator , Lube Oil Purification System

1. Application

1.1 Based on the centrifugal oil purifier , KANGWEI fuel oiltreatment systems are designed to protect your engine

and/or gas turbine equipment. They have proven their efficiency and reliability in engine rooms worldwide for
decades. Installed between the bunker tank and the day tank, KANGWEI fuel oil separators protect diesel engines
and gas turbines by removing water, water soluble salts,and solid particles from the fuel.
1.2 For heavier fuel and crude oils,we supplies a wide range of self-cleaning purifier systems. These are available
as separate modules and include pre-heater, starter and control panel.
2. Features and benefits
• Simple, compact and robust design
• Highest separation efficiency in removing solids and water
• No pre-filtration necessary
• Environmentally friendly sludge disposal (no cartridges)
• Automatic, unattended operation
• Easy maintenance
• Low operating cost
• Proven reliability and long lifespan
• Reliable process for maximum performance
3. Designing including as below
• Feed pump with electric motor
• Self-cleaning centrifugal separator with electric motor
• Control panel with local operator device
• Atmospheric sludge tank complete with sludge pump
• Instrument air distribution system
• Wired and piped to skid limit
• Module base frame with drip pan, lifting lugs and earthing
• Suitable offshore painting
• Tagging and marking
• Factory Acceptance Test (FAT)
• Documentation
4. One module include one ,two or three purifier which designed according to the technical demand

  Purifier unit model parameters
Model SM203- S(O) SS(A)203-S(O) SS(A)204-S(O) SS(A)405-S(O) SS(A)309-S(O) DS(A)203-S(O)
Item
Purification volume Rated value 2000 1500 2000 3000 6000 1500
(L/H) 0# Diesel oil 2200 1600 2200 3500 6500 1600
  30# SAE LO. 1200 800 1200 1800 3600 800
  180Cst/50℃HFO / 700 1100 1600 3500 700
Power(KW) Separator 2.2 1.5 3 5.5 11 1.5x2
  Oil feed pump 1.5 1.5 1.5 1.5 2.2 1.5(1.5x2)
  E-heating / / / / / /
  Others 0.2 0.2 0.2 0.2 0.2 0.2
Slag discharge way Manual Discharge Auto slge / Auto partial discharge
Heating way Steam 0.45~0.7MPa /Conduction oil 170~210℃
Control way Relay Relay/by PLC auto control
Machine weight 780 760 785 980 1830 1300
Outline dimension(mm) Length 1150 1150 1150 1300 1700 2000(2200)
Width 1150 1150 1150 1300/ 1850 1200
Height 1700 1700 1700 1780 2070 1700
Interface dimension Fuel oil inlet/ DN25/ DN25/ DN25/ DN40/ DN40/ DN25/
outlet/ DN25/ DN20/ DN25/ DN32/ DN40/ DN25/
  return oil outlet DN25 DN20 DN25 DN32 DN40 DN25
  Medium inlet DN20(DN25) DN20(DN25) DN20(DN25) DN25 DN25 DN20(DN25)
  Medium outlet DN20(DN25) DN20(DN25) DN20(DN25) DN20(DN25) DN25 DN20(DN25)
  Control water inlet G1/2” G1/2” G1/2” G1/2” G1/2” G1/2”
Incoming cable CEFR4x2.5 CEFR4x2.5 CEFR4x2.5 CEFR4x4 CEFR4x6 CEFR4x4
Alarm output cable CEFR2x0.75 or CEFR10x0.75
Power supply 3φ-380V/50Hz or 3φ-440V/60Hz
  Purification unit model parameters
Model DS(A)204-S(O) DS(A)405-S(O) SS(A)203-E SS(A)204-E DS(A)203-E DS(A)204-E
Item
Separated volume Rated value 2000 3000 1500 2000 1500 2000
(L/H) 0# Diesel oil 2200 3500 1600 2200 1600 2200
  30# SAE LO. 1200 1800 800 1200 800 1200
  180Cst/50℃HFO 1100 1600 700 1100 700 1100
Power(KW) Separator 3 x2 5.5 x2 1.5 3 1.5x2 3 x2
  Oil feed pump 1.5(1.5x2) 1.5(1.5x2) 1.5 1.5 1.5(1.5x2) 1.5(1.5x2)
  E-heating / / 3x3 6x3 5x3(5x3x2) 8x3(8x3x2)
  Others 0.2 0.2 0.2 0.2 0.2 0.2
Slag discharge way Auto slge / Auto partial discharge
Heating way Steam 0.45~0.7MPa /Conduction oil 170~210℃ By electricity
Control way Relay/by PLC auto control
Machine weight 1390 1715 800 835 1550 1620
Outline dimension(mm) Length 2000(2200) 2200 1150 1150 2200 2200
Width 1200 1250 1150 1150 1200 1200
Height 1700 1780 1700 1700 1700 1700
Interface dimension Fuel oil inlet/ DN32/ DN40/ DN25/ DN25/ DN25/ DN32/
outlet/ DN32/ DN40/ DN20/ DN25/ DN25/ DN32/ DN32
  return oil outlet DN32 DN40 DN20 DN25 DN25
  Medium inlet DN20(DN25) DN25 / / / /
  Medium outlet DN20(DN25) DN20(DN25) / / / /
  Control water inlet G1/2” G1/2” G1/2” G1/2” G1/2” G1/2”
Incoming cable CEFR4x4 CEFR4x6 CEFR4x6 CEFR4x10 CEFR4x16 CEFR4x25
Alarm output cable CEFR2x0.75 or CEFR10x0.76
Power supply 3φ-380V/50Hz or 3φ-440V/61Hz
Oil Separator unit Parameter Table
Model KYDR203CD-21 KYDB203DD-21 KYDB204DD-21 KYDB405SD-21 KYDB309SD-21 KYDB513SD-21
Item

Rated Separater Volume
(L/H)

2000 1500 2000 3000 6000 10000
Drum
Rotating
Speed
(r/min)
9000 9400 9300 9100 5800 6200
Separating Factors(g) 12450 9037 9910 12034 7050 9131
Engine Power(Kw) 2.2 1.5 3 5.5 11 15
Drive Way High-speed Strap
Start/Stop
time
3~5min/10~15min 5~8 min/15~20min
Sludge Discharge
Way
Manual Discharge Auto Valve-circled Partial Discharge
Dirty Oil Input Way Independent External Pump

Dirty Oil Input Pressure
(MPa)

~ 0.1
Purified Oil Output Way Concentric Pump
Purified Oil output Pressure
(MPa)
0.2-0.3
Controlled-water Pre./Tem.(MPa)/(℃)

0.02~0.7

(No requirement)

0.2-0.3 / 85-95
Net Weight
(Kg)
268 250 270 400 900 1100

Outline Dimension
(mm)LxWxH

720x450x850 710x420x840 720x450x850 840x510x930 1220x800x1300 1300x900x1450
Power Supply
(V/Hz)
3ф-380V/50Hz, 3ф-440V/60Hz

Custom Centrifugal Hfo Purifier Separator , Lube Oil Purification SystemCustom Centrifugal Hfo Purifier Separator , Lube Oil Purification System
